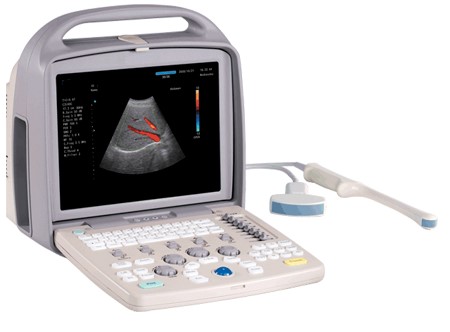

Portable color doppler ultrasound machines



A portable ultrasound is mobile and light. Economy portable ultrasound machines are in high demand as secondary units for doctors with multiple facilities, in price sensitive regions or for medical professionals that only occasionally perform ultrasound scans. A portable ultrasound has acceptable image quality with a color flat screen monitor and limited features and hardware power in order to stay price competitive. While all these devices can be carried by hand, some of these can even be operated with a battery, and at the time of an emergency. This has proven to be a very valuable feature for many doctors and clinicians.





Key Features

  • Dynamic beam forming
  • spatial compounding imaging
  • speckle reduction imaging
  • Tissue Harmonic Imaging (THI)
  • Tissue Specific Imaging (TSI)
  • B Steer, Trapezoid Imaging, Colorization
  • panoramic view
  • A smart new shape for enhanced mobility that is compact and lightweight
  • Lightweight and durable transducers for multi-modality imaging
  • Quick Save One push image transfer to local or directly to USB
  • one button image optimization
  • enables accurate viewing of image from distance
  • clipboard, onboard reporting
  • auto-measurement of carotid intimal-medial thickness
  • Onboard reporting
  • high definition LCD
  • Lithium-ion battery

Options

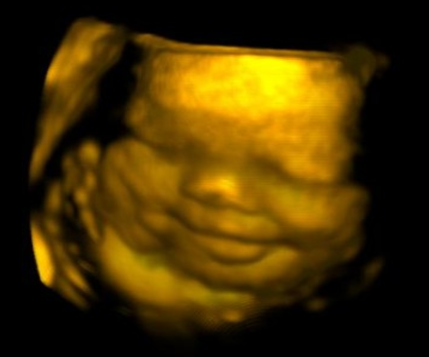

  • 4D volume probe
  • Hard disk
  • Li-ion battery(Battery provides 1 hour of scanning time)
  • Ergonomic trolley(accessory box, printer & probe holders)
  • Printer (thermal or laser)
  • Ergonomic trolley(accessory box, printer & probe holders)
  • Probes:
  • convex probe, transvaginal probe, linear probe, micro-convex probe, phased array probe

Displaying mode

B,B/B,4B,B/M,M,PW,B/C,B/C/D,B/D, 4D, duplex, triplex, CFM

Signal processing

Full-digital beam forming, dynamic filter, dynamic real time receiving focusing, RDA, spectral processing, CFM processing, real-time dynamic focusing, dynamic aperture in all fields

General measurement

B mode-distance, circumference, area, volume, angle, area Red, Diam Red

M mode- distance, time, velocity, heart rate

Body mark

Abdominal ,Cardiology, Gynecology, Obstetrics, Small parts

Abdomen

measurement

Liver, GB, Aorta, GBWT, CBD, Portal Vein, Spleen

OB packages

GS ,BPD, CRL,FL,YS,TAD,LV,OFD,NT,AC,HC, APAD, Cxlength.

Gynecological  packages

Uterine measurement (Uterine diameter, uterine endometrial); left/right ovary measurement; left/right sacculus measurement; Cervix; Uterine depth

Urology packages

Left/right kidney measurement, Volume, Cortex

Small parts Measurement

Left/ right thyroid, volume, Isthnus and calculating report

Cardiac Measurement Package

Heart rate, Valve speed, LV, aortic, mitral, ventricular

CW , TDI ,Semi-Automatic Trace ,Tei Index ,PISA

Skeletal & Muscles

Skeletal & Muscles, distance, area, Hip angle

Vascular

Senosis D, senosis A, Lt/Rt VVA, Lt/Rt Rulb, Lt/Rt ICA

Input/output ports

VGA, USB port, DICOM port

Standard Configuration

·         Main unit, LCD monitor (Rotatable 0°~30°), 2 probe connectors, DICOM 3.0
