Product Details

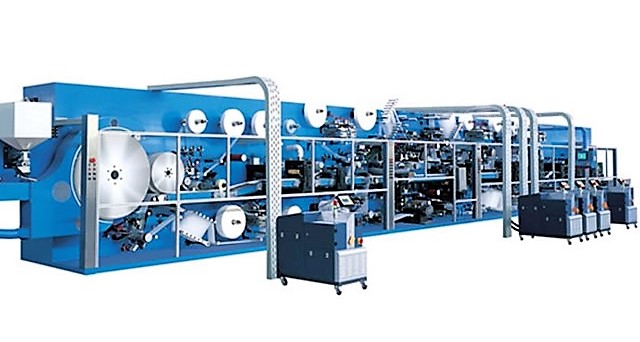

Diaper Production Line
Main Features
- Power and control center centralized management, modularity design.
- Brand new frame and module structure, future developed consideration, easy transformation and upgrading.
- Easy operation & Maintenance.
- High Speed, Low Consumption, High Efficiency, visualized, intelligent and full servo control system.
- Servo or Frequency Inverter Transmission.
- Color Touch Screen for Man-Machine conversation.
- Products auto-counting and stacking, auto record and calculation for the process data.
- Auto-detecting and alarm for materials ending or breaking, the machine will stop automatically once raw materials run out.
- Active unwinding and Constant Tension Control.
- Web Guiding Controllers.
- Sensor quality control system.
- Raw materials zero speed automatic splicing system and auto reject the defects.
- Elastic auto-splicing system.
- Easy Size Changing.
- With safety protection door and dust collector.
- Raw materials at right angles (90°) feeding unit.
- SAP dosing and auto-feeding.
- Drum forming.
- Ultrasonic side sealing for waistband combination.
Technical specifications:
|
Designed Speed |
600pcs/min |
|
Stable Production Speed |
450pcs/min |
|
Production Line Center Distance |
300mm(the distance from the material center line to the rack-mounted panel) |
|
Distribution of Raw Material |
top(surface)-absorption layer bottom-cloth like non-woven |
|
The Deviation of Products Weight |
±1.5g |
|
Rate of Finished Products |
≥97% (not including rejected baby diapers at the glue applicator,splicing and jointing material stations) |
|
Production Machine Efficiency |
≥85% |
|
Power Supply |
380V 50HZ |
|
Power Consumption |
300KW (reference)(not including the glue applicator station and the air compressor) |
|
Electric Supply |
380V ± 5%,50HZ, (3 phase,for wire plus ground) |
|
Compressed Air Supply Pressure |
0.6-0.8Mpa (air supplier provided by buyer) |
|
Overall Machine Dimensions(Stacker excluded) |
27m(L) *4m(W)*3.8m(H) (reference) weight 60 tons |
|
Equipment Process Flow |
to be defined by customer |
